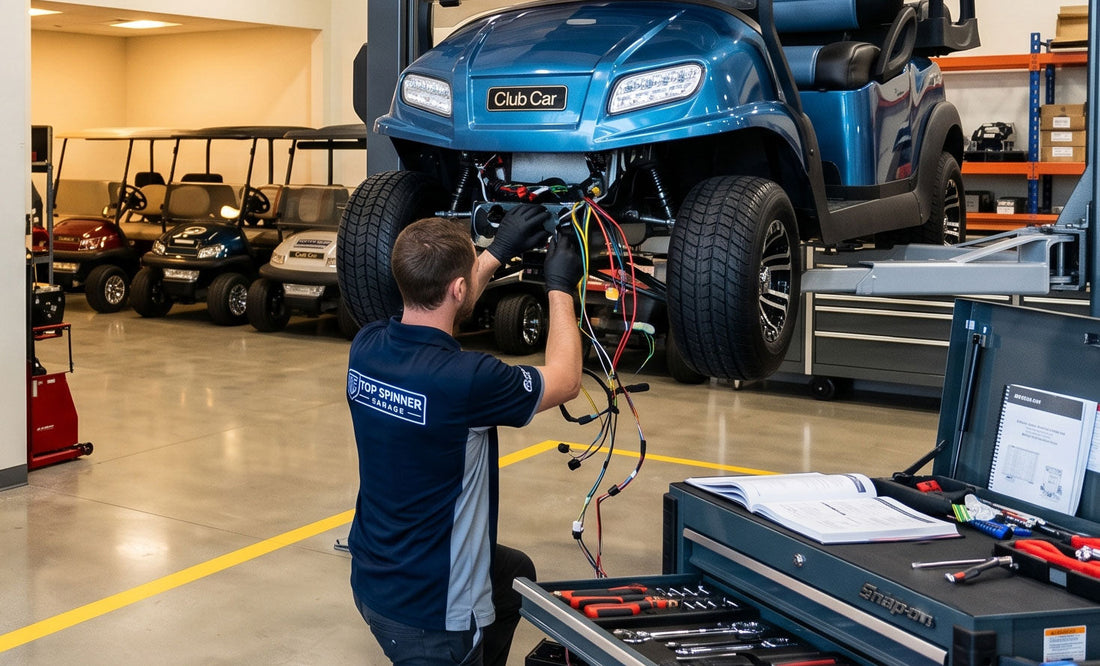

Rewiring a golf cart can feel like staring into a bowl of multicolored spaghetti, but taking control of your cart’s electrical system is one of the best ways to ensure reliability, boost performance, and safely add modern accessories. Whether you are dealing with brittle, corroded 15-year-old factory wires or prepping your cart for high-draw upgrades, this comprehensive guide will walk you through the essential knowledge, planning steps, and installation best practices for a fresh start.
1. Understand the Two Electrical Systems in Your Cart
Before stripping out a single wire, it is crucial to understand that your golf cart actually operates on two distinct electrical systems.
The High-Voltage Powertrain (The “Muscle”)
- What it does: Delivers raw power from your battery pack to the controller, forward/reverse switch, solenoid, and motor.
- The Hardware: Uses heavy-gauge cables (typically 4 AWG or 2 AWG) to handle massive current draw without overheating.
- When to replace: If your cart bogs down on hills, the cables feel hot to the touch after a run, or you see green corrosion bubbling out from the terminal boots.
The Low-Voltage Accessory System (The “Brain & Comfort”)
- What it does: Powers your lights, horn, turn signals, brake switches, USB chargers, and audio systems.
- The Hardware: Runs on a standard automotive-style wiring harness with much thinner wire (usually 16 AWG to 12 AWG).
- When to replace: If you have intermittent light failure, phantom battery drains, or a messy web of DIY wire splices from previous owners.
2. Choosing the Right Wiring Harness Route
When shopping for a new accessory wiring harness, you generally have two choices: Factory Replacement or Universal/Street-Legal Upgrade.
| Harness Type | Best For | Pros | Cons |
|---|---|---|---|
| Factory-Spec (Direct Fit) | Restoring a stock cart to its original condition. | Plugs directly into your specific model’s existing switches and light buckets. | Harder to add advanced street-legal features later if not pre-wired. |
| Universal Street-Legal Kit | Adding headlights, tail lights, turn signals, and a horn all at once. | Comes bundled with the necessary switches and an integrated fuse block. | Requires routing new lines from scratch; might require adapting stock light plugs. |
⚠️ Buying Tip: Always buy a harness tailored to your cart’s specific generation (e.g., Club Car Precedent vs. DS, EZGO TXT vs. RXV, or Yamaha G-Series vs. Drive/Drive2). Main chassis lengths and routing channels differ significantly between brands.
3. The Golden Rule of Golf Cart Electronics: Voltage Reduction
If you are completely redoing your accessory wiring, do not skip a high-quality 12V voltage reducer. Electric golf carts operate on high-voltage battery packs (usually 36V or 48V, comprised of series-connected 6V, 8V, or 12V batteries, or a single large Lithium pack). However, almost all standard accessories (lights, radios, USB ports) run on 12V.
The Old (Dangerous) Way: Tapping Two Batteries
Older DIY setups often tapped into just two 6V batteries in the pack to get 12V. Avoid this. It creates an uneven draw, permanently damaging those two batteries and drastically shortening the lifespan of your entire pack.
The Right Way: A Dedicated Voltage Reducer
A voltage reducer connects to your entire 36V or 48V pack and cleanly steps it down to a stable 12V output.
- Look for a “Key-Switched” Reducer: This features a trigger wire connected to your ignition. When you turn the key off, the reducer shuts off completely, preventing your accessories or the reducer itself from slowly draining your batteries overnight.
4. Step-by-Step Installation Blueprint
If you’re pulling out the old system and starting fresh, follow this systematic order of operations to avoid headaches.
Step 1: Safety & Disconnection
- Turn the cart’s key switch to OFF and flip the Run/Tow switch (if equipped) to TOW.
- Disconnect the main positive and main negative cables of the battery pack. Disconnect the main pack completely before touching any low-voltage wiring.
Step 2: Map and Document
- Take photos of your current routing before pulling anything out. Note where the harness dives through the floorboard panels or runs along the frame chassis.
Step 3: Lay the Harness Groundwork
- Lay your new harness loosely along the length of the cart to ensure it reaches from the dash area to the rear light buckets.
- Avoid pinch points: Route wires away from moving parts like steering columns, brake linkages, and suspension components. Stay clear of areas that trap excessive heat.
Step 4: Mount the Central Hubs
- Mount your voltage reducer and accessory fuse block in a clean, dry area (usually under the seat or behind the dash structure).
- Connect your accessory harness leads to this centralized fuse block.
Step 5: Wire the Dash and Switches
- Feed the steering column wires upward for your turn signal switch and horn.
- Connect the key-switch trigger wire so your accessory system knows when the cart is active.
Step 6: Final Connections and Testing
- Once all accessories are plugged into the harness, connect the voltage reducer’s input side to the main positive and negative of your battery pack.
- Reconnect your heavy-gauge battery cables.
- Test each function one by one: headlights, brake lights, turn signals, and accessories.
- Only after everything tests perfectly should you secure the harness firmly with UV-resistant zip ties or split-loom tubing.
5. Pro-Tips for a Bulletproof Electrical System
- Use Marine-Grade Heat Shrink Connectors: Golf carts live in high-vibration, high-moisture environments. Standard plastic crimp connectors will eventually corrode or vibrate loose. Heat shrink terminals with internal adhesive seal out water completely.
- Dielectric Grease is Your Friend: Apply a small dab of dielectric grease to all plug-in harness connections and bulb sockets to prevent moisture intrusion and corrosion.
- Gauge Matters for High-Amp Upgrades: If you are upgrading your motor or controller at the same time, upgrade your heavy battery cables to 2 AWG. Thicker cables minimize resistance, resulting in cooler operating temperatures and maximum torque delivery.
